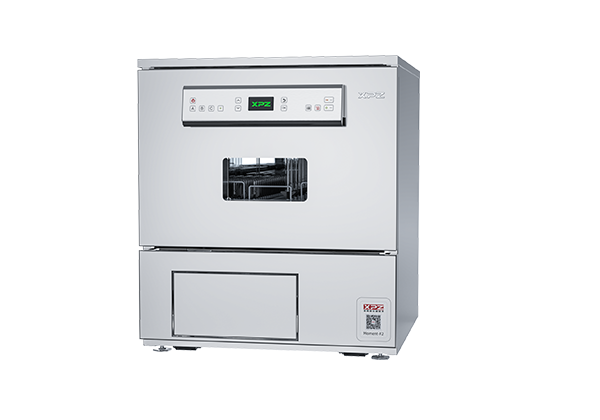

Moment-2/F2---Lab Glassware Washer

Moment-2/F2 laboratory fully automatic bottle washing machine, which can be installed on the test bench separately, can be connected to two kinds of water sources, tap water and pure water. The normal cleaning process is to use tap water to heat and detergent for main washing, and then use pure water Rinse the cleaning items, it will bring you a convenient and quick cleaning effect, when you have drying requirements for the cleaning utensils, please choose Moment-F2.
Product parameters

Moment-2/F2:

Moment-2 / F2 laboratory glassware washer,can be installed under the laboratory table-board or separately. It can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly wash, then use Pure water rinsing. It will bring you a convenient and fast cleaning effect, when you have drying requirements for cleaned utensils, please choose Glory-F2.


structure:

The inner cavity is made of 316L stainless steel, and the outer shell is made of 304 stainless steel, which has super corrosion resistance.


Control System:

The control system has 35 standard programs and 100 custom setting programs.


Work requirements:

Power supply: 220-230V single-phase 50HZ or 380-400V three-phase five-wire

Inlet water: municipal tap water and laboratory pure water for rinsing

Power: 4KW/9KW total approved power 5KW/10KW


Quadruple filter system:

Inlet coarse filtration prevents particles in the water from entering the cavity, double sewage circulation filtration helps to prevent particles and debris from recirculating in the water, and reverse flow filtration of the circulation pump protects the service life of components.


Circulatory system:

500L/min cycle speed, with cycle speed detection system and overheat protection device.


Drying system:

High-efficiency HEPA filter compressed air drying system can thoroughly dry the inner and outer surfaces of glassware, and start the drying system with one button;

The drying temperature is adjustable and the drying time is adjustable. You can choose Moment-F2 if you need to dry


Specifications:

                         Series                      Item                    Moment-2                  Moment-F2



    Gloey series

Diemsion
W612*D750*H685mmW612*D750*H685mm
Chamber volume126L(Built-in light control)126L(Built-in light control)
Number of cleaning layers1-21-2
Circulation pump flow rate320L/min320L/min
Heating Power4kw/9kw4kw/9kw
Electricity

220v/380v

220v/380v
Drying wayEcodryHot air heating
Instllation methodTable topTable top
Opening method
Front load doorFront load door


Features description:

                            Series                                 Item                                Moment-2/F2





         Moment series

Operation interface

Microcomputer intelligent control.OLED display, water proof

Stainless steel metal buttons with 3 shortcut program keys

Support Chinese/ Russian/ English three languages

Programs35 Detault, 100 user-defined
PasswordMulti- level password protection
DoorAutomatic opening door with viewing window
BasketsModularity basket, one layer can put 2 baskets
Detection& tracking system

Conductivity detection function (Optional);

Printingfunction (Optional);

Data storage function

Wash start delayWash start delay function & Delay shutdown function
Basket identitication functionCan save water, save electricity, save detergent
Spray systemThe speed sensing system of the spray arm can adjust the speed according to the type of utensils to be cleaned according to the user's needs, and carry out real-time monitoring to ensure that the speed is within the set range


Welcome to buy Xipingzhe, we will provide you with comprehensive technical support and perfect after-sales service!
